GATE question papers: Architecture and Planning 2008 (AR)

Q. 1 - Q. 20 carry one mark each.

1.

Function of Air Handling Unit in a building is to

(A) purify and re-circulate the cool air.

(B) supply purified bulk of air from outside to the window air-conditioner.

(C) collect the stale air from the room and throw it outside the building.

(D) act as a container in which air is carried from one place to the other.

2.

The KYOTO Protocol - 2003 addressed the issue of

(A) Bio-diversity

(B) Green House Gases

(C) Wetlands

(D) Rainwater harvesting

3.

The principle of Solid Waste management involves

(A) Reproduce, Reuse, Recycle.

(B) Recycle, Replenish, Reuse.

(C) Reduce, Reuse, Reproduce.

(D) Reduce, reuse, recycle.

4.

The correct diagram for a Mirror Stereoscope is

5.

Which of the following is not included in the UDPFI Guidelines for urban development?

(A) Perspective Plans

(B) Development Plans

(C) City Development Plans

(D) Annual Plans

6.

A system of art-appreciation characterized by an unorthodox experimental approach to appreciate visual, literacy and musical aspects of a design process, is called

(A) Avant-garde

(B) Post-modernism.

(C) Neo-impressionism

(D) Proto-Deconstruction

7.

An applied science of design concerning universal human characters and configurations aiming at effective utility and safety is called

(A) Anthropometry.

(B) Cognitive behavioural mapping.

(C) Universal design.

(D) Ergonomics

8.

'Entasis' is a visual correction for end columns by providing

(A) a slight convexity to the columns.

(B) a slight concavity to the columns.

(C) a major convexity to the columns.

(D) a major concavity to the columns.

9.

The first group of the people to influence the architecture of south-east Asia and the Amaravati School of Art was

(A) Sakas and Palas.

(B) Satavahanas and Pundyans.

(C) Pallavas and Guptas.

(D) Rashtrakutas and Chalukyans.

10.

A linear regression model involving one independent and one dependent variable requires at least

(A) One pair of data.

(B) Two pairs of data.

(C) Three pairs of data.

(D) Four pairs of data.

11.

Identify the FALSE statement

(A) Susceptibility to non-structural elements' damage in any building would be high even in a moderate level earthquake

(B) For important non-structural elements, no structural analysis is required to assess vulnerability.

(C) Earthquake damage to non-structural elements results in loss of critical functions.

(D) The non-structural elements can be retrofitted appropriately.

12.

Under which category the percentage of land use decreases with an increase in city size?

(A) Residential

(B) Commercial

(C) Recreational

(D) Transportation and Commnication

13.

The instrument that provides standards for land development by indicating lot sizes and layouts is

(A) Zoning regulations.

(B) Land use control.

(C) building bylaws.

(D) Subdivision regulations

14.

Identify the group containing only GIS packages.

P. Total Station

Q. Sat Guide

R. GPS

S. ILWIS

T. CorelDraw

U. GeoMedia

V. ArcInfo

(A) P, Q, U

(B) Q, R, V

(C) S, U, V

(D) R, T, V

15.

Organizations namely STACO, UNSCC and ISO are associated with:

(A) Environmental planning

(B) Landscape architecture

(C) Modular coordination

(D) Urban design

16.

'Inflorescence' in a tree-structure refers to

(A) flowering character.

(B) Fragrance of the flowers.

(C) Spread characteristics of the branches

(D) Depth of the root structure.

17.

Income inequalities across population is expressed through

(A) Cohort pyramid.

(B) Lorenz curve.

(C) Indifference curve.

(D) Inverted U-curve.

18.

The Columbian Exposition in North america is synonymous with

(A) City Beautiful Movement.

(B) Urban Lake front development.

(C) AIAM.

(D) Broad-arch city.

19.

The ideal cross-section of a combined sewerage system for significant variation in flow is

(A) Circular.

(B) Egg-shaped.

(C) Semi-elliptical.

(D) Horse-shoe-shaped.

20.

The international guideline for conservation and restoration of monuments and sites recomnended by ICOMOS, is known as

(A) Venice Charter.

(B) Amsterdam Declaration.

(C) Granada Convention.

(D) Burra Charter.

Q. 21 to Q. 75 carry two marks each.

21.

Heating, cooling and ventilation in passive system designs are dependent on

(A) different in standards of active energy system and amount of sumlight.

(B) quality of insulation and quantity of glazing.

(C) mechanical ventilation and the floor height of the building.

(D) daylight factor and energy from mechanical system.

22.

Which pair, out of the following options, is used in more than one computer languages listed below?

C, AutoLISP, Basic, Pascal

(A) ; /n

(B) , ?

(C) ? /n

(D) , ;

23.

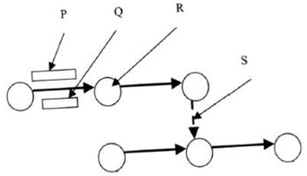

Match labels in the diagram with items in the table:

(A) P - 1, Q - 2, R - 4, S - 3

(B) P - 4, Q - 1, R - 3, S - 2

(C) P - 3, Q - 2, R - 1, S - 4

(D) P - 1, Q - 3, R - 4, S - 2

24.

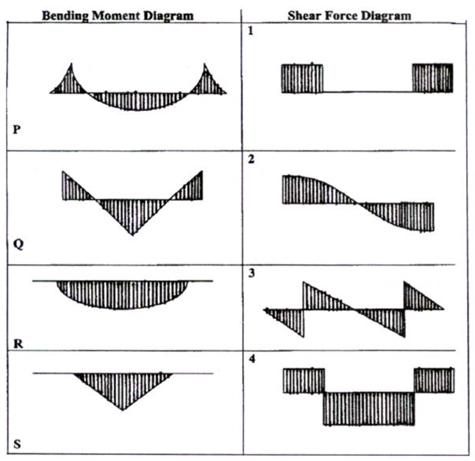

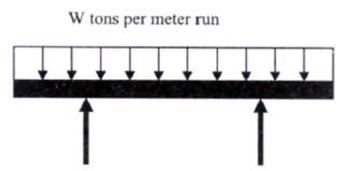

Select the valid combination of shear force and bending moment diagrams for the loading shown below

(A) P-3

(B) Q-2

(C) R-1

(D) S-4

25.

Recommended temperature and fresh air flow for HV AC systems in office buildings India are

(A) 21°C with maximum of 30°C in summer and 25°C in winter, with fresh air provisions of 18-22 litres per second per person.

(B) 29°C with maximum of 32°C in summer and 36°C in winter, with fresh air provisions of 28-32 litres per second per person.

(C) 30°C with maximum of 36°C in summer and 32°C in winter, with fresh air provisions of 38-42 litres per second per person.

(D) 21°C with maximum of 24°C in summer and 22°C in winter, with fresh air provisions of 8-12 litres per second per person.

26.

Match the following

(A) P - 4, Q - 2, R - 1, S - 3

(B) P - 3, Q - 1, R - 4, S - 2

(C) P - 2, Q - 3, R - 1, S - 4

(D) P - 1, Q - 4, R - 2, S - 3

27.

Structural adjustment between two regions with respect to supply and demand of labourers and their wages is explained by

(A) Input-Output Analyses by W. Leontiff.

(B) Export-Base Model by Douglas C. North.

(C) Backwash effect based Economic Growth Model by Gunner Myrdal.

(D) Economic Base theory by Hans Blumenfield.

28.

Match the surfaces in Group - I with their respective range of albedo values in Group - II

(A) P - 3, Q - 4, R - 2, S - 1

(B) P - 4, Q - 3, R - 2, S - 1

(C) P - 4, Q - 3, R - 1, S - 2

(D) P - 4, Q - 2, R - 3, S - 1

29.

Which of the following is NOT a criterion for defining urban areas in India?

(A) Population size

(B) Percentage of male working population engaged in non-agricultural pursuits.

(C) Density of population

(D) Percentage of pucca Houses.

30.

Signal phasing in transportation system refers to

(A) the number of combinations of traffic movements served through a signalized intersection.

(B) the distance between signalised intersections.

(C) phase of electric power required to make the signals operational.

(D) relative placements of red, green and amber lights on a signal post.

31.

Match the following

(A) P - 0, Q - 0, R - 0, S - 0

(B) P - 0, Q - 0, R - 0, S - 0

(C) P - 0, Q - 0, R - 0, S - 0

(D) P - 0, Q - 0, R - 0, S - 0

32.

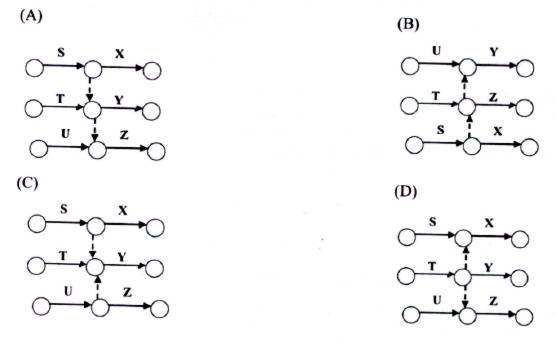

Identify the right network representing the following statement,

'S controls X, Y  & Z; T controls Y  & Z; and U controls Y'

33.

Architectural projects designed by Laurie Baker are generally characterised by

P. Appropriate technology

Q. Human scale

R. Interpretation of nine-square model

S. Use of locally available materials

(A) P, R, S

(B) P, Q, S

(C) Q, R, S

(D) P, Q, R

34.

Match the glasses listed in Group I, with the appropriate descriptions in Group II

(A) P - 4, Q - 1, R - 3, S - 2

(B) P - 1, Q - 3, R - 2, S - 4

(C) P - 3, Q - 4, R - 2, S - 1

(D) P - 2, Q - 3, R - 4, S - 1

35.

Which of the following commands in AutoCad is used to extract one or more elements from a list?

(A) Filter

(B) Boundary

(C) Explode

(D) Eattext

36.

Identify the satellites that provide useful information for physical planning.

P. IKONOS

Q. IRS-ID

R. CartoSaT

S. INSAT-IB

T. PSLV

U. Google Earth

V. Apple

W. Quick Bird

(A) P, Q, R, W

(B) R, S, T, V

(C) P, Q, R, S

(D) S, T, U, V

37.

Stack effect is

(A) the process of supplying fresh air by electro-mechanical means both verticlaly and horizontally.

(B) the tendency of hot air in a shaft to rise and create a draft of cool air intake.

(C) the air-supply to a motor-driven louvered opening in basement.

(D) the circulation of fresh air through windows from the plenum level.

38.

Match the equipments with their use.

(A) P - 1, Q - 3, R - 2, S - 4

(B) P - 2, Q - 3, R - 4, S - 1

(C) P - 4, Q - 2, R - 1, S - 3

(D) P - 3, Q - 1, R - 4, S - 2

39.

'Contemporary architecture has made a shift from machine-based modernist approach to passive energy-sensitive approach.'

Which of the following groups of architects best represent this shift?

(A) Paul Rudolph, Mies van der Rohe, Arato isozaki

(B) Norman Foster, james Carpenter, Richard Rogers

(C) James Sterlings, Phillip Johnson, Ralph Rapson

(D) Arthur Erikson, Frei Otto, Rem Koolhass

40.

'Park le de Villete', Paris designed by Bernard Tschumi, is characterised by

(A) continuous sequence along a zigzag line.

(B) beast like benches embedded with fragments of coloured tiles and stepped terraces.

(C) point grid, superimposition and agglomeration of activities.

(D) semi underground cave-like gallery for the display of artworks.

41.

The predominant characteristics of spatial organizational principles found in the works of Le Corbusier and Frnak Lloyd Wright are characterized respectively by

(A) Grid organization and Linear-plannar organization.

(B) Centralized-clustered organization and Grid organization.

(C) Radial organization and grid-radial organization.

(D) Centralized organization and Multi-grid organization.

42.

The ratio presented by the two-number series 70:113:183 and 86:140:226 stand respectively for

(A) the blue and the red series of le Modular

(B) the vertical and horizontal proportions found in Leonardo da Vinci's Pentagram.

(C) the horizontal and vertical proportions found in Leonardo da Vinci's Pentagram.

(D) the red and the blue series of Le Modular.

43.

The difference between an axonometric projection and an isometric projection of an object with respect to a picture plane is in terms of

(A) height or breadth of cross-sectional views generated by the picture plane.

(B) measurements in the angle of faces with respect to the aspect ratio.

(C) obliqueness in projection of faces of the object on the vertical plane.

(D) foreshortened angular measurements in the three principal axes.

44.

A squinch system is a method of constructing an arch across a square base by erecting

(A) pendentives and cul-de-four.

(B) Intra-domes and Tension ring.

(C) Saucer-domes and Traverse vaults.

(D) Cross-bandages and Hoop lines.

45.

Match the following

(A) P - 1, Q - 2, R - 3, S - 4

(B) P - 3, Q - 2, R - 4, S - 1

(C) P - 4, Q - 3, R - 2, S - 1

(D) P - 4, Q - 2, R - 3, S - 1

46.

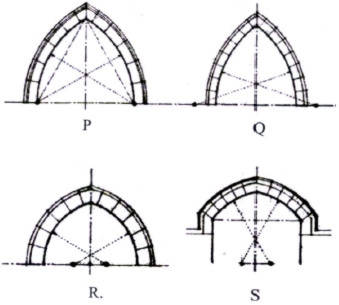

Match the appropriate arches with types listed below.

1. Equilateral

2. Lancet Arch

3. Drop Arch

4. Surbased Arch

5. Tudor Arch

6. Roman Arch

(A) P - 1, Q - 2,  R - 5, S - 3

(B) P - 1, Q - 2, R - 3, S - 5

(C) P - 1, Q - 2, R - 3, S - 4

(D) P - 6, Q - 2, R - 5, S - 3

47.

The study of varying population sizes of urban centers in a region is assessed by

(A) Multiplier effect.

(B) Rank-size rule.

(C) Shift-share analysis.

(D) Bulk share of workforce.

48.

Identify the correct hierarchy of traditional Indian settlements expressed in an ascending order.

(A) Kharvata - Khetaka - Nagara - Durga

(B) Durga - Vidambaka - Pura - Rajdhani

(C) Grama - Khetaka - Kharvata - Nagara

(D) Nigama - Agrahara - Pura - Kharvata

49.

Formal regions and functional regions are determined respectively by their

(A) 'Natural resources; physiography' and 'economic linkages.'

(B) 'Economic linkages' and 'Natural resources; physiography.'

(C) 'Industrial location' and 'Transportation; communication.'

(D) 'Transportation; communication' and 'Industrial location.'

50.

Nagar panchayats and district Planning Committees in India were introduced as a result of

(A) National urbanisation Policy

(B) Jawaharlal Nehru National urban Renewal Mission

(C) Electoral reforms

(D) Constitution (73rd and 74th Amendment) Act

51.

The concept of 'Slum-networking' aims to promote

P. social and physical improvement of slums.

Q. holistic development in conformity with the infrastructure of the entire city.

R. improvement of physical networks only within the slum areas.

S. rehabilitation of slum dwellers.

(A) P, Q

(B) P, Q, R

(C) P, R

(D) Q, R, S

52.

Shells and Space Frames are examples of

(A) modular Bulk-active and Form-active systems respectively.

(B) modular Surface-active and Vector-active systems respectively.

(C) modular Vector-active and Form-active systems respectively.

(D) modular Bulk-active and Surface-active systems respectively.

53.

The Law of vicinity states that

(A) the objects of similar form situated close enough together are perceived as one.

(B) the objects of similar form situated at a distance are perceived as one.

(C) the objects of different forms situated close enough together are perceived as one.

(D) the objects situated close enough together are perceived as confusing.

54.

Luminaire efficiency is defined as the

(A) sum of the light outputs of the lamps operating inside the luminaire to the ratio of the sum of the light output of the luminaire operating outside the luminaire.

(B) sum of the individual light outputs of the lamps operating outside the luminaire to the ratio of the light outside of the luminaire.

(C) ratio of the light output of the luminaire to the sum of the individual light outputs of the lamps operating outside the luminaire.

(D) ratio of the light output of the luminaire to the individual light output of the lamp operating outside the luminaire.

55.

Match the following

(A) P - 1, Q - 2, R - 3, S - 4

(B) P - 3, Q - 2, R - 4, S - 1

(C) P - 2, Q - 1, R - 4, S - 3

(D) P - 4, Q - 3, R - 1, S - 2

56.

Negative and positive correlations between Price and Quantity of a commodity are respectively represented by

(A) Demand and supply curves.

(B) Supply and demand curves.

(C) Indifference curves and scattered matrix.

(D) Scattered matrix and indifference curves.

57.

Traditional Indian settlement patterns, based on orthogonal grid are represented by:

(A) Padmaka, Kurmaka and Swastika

(B) Mandala, Kurmaka and Angula

(C) Dandaka, Vidambaka and Dhanurmusti

(D) Sarvatabhadra, Prastara and Chaturmukha

58.

Plans of Mohenjodaro and medieval Jaipur are based on:

(A) grid pattern and sectoral allocating of zoning.

(B) radial pattern and grid allocating of zoning.

(C) clustered pattern and segregated allocating of zoning.

(D) centralized pattern and composite allocating of zoning.

59.

Match the following

(A) P - 1, Q - 3, R - 4, S - 2

(B) P - 2, Q - 3, R - 1, S - 4

(C) P - 2, Q - 1, R - 3, S - 4

(D) P - 3, Q - 2, R - 4, S - 1

60.

The most appropriate criteria to be considered for delineating backward regions are

P. density of population.

Q. amount of sales tax collection.

R. infant mortality.

S. per capita income and its distribution.

(A) P, R

(B) R, S

(C) P, S

(D) P, Q

61.

The relationship between headway (h) and flow (q) in a traffic stream is represented by:

(A) h = q²

(B) h = q

(C) h = 1 / q²

(D) h = 1 / q

62.

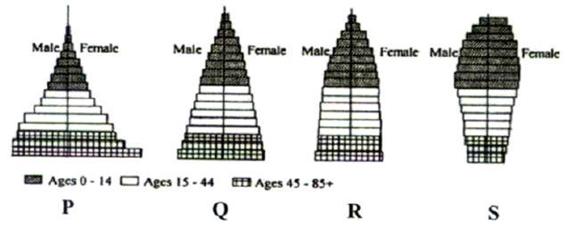

Match the diagrams of Age-Sex pyramids from the description of the population growth, given below:

1. Rapid Growth

2. Slow Growth

3. Zero Growth

4. Negative Growth

(A) P - 1, Q - 2,  R - 2, S - 4

(B) P - 4, Q - 3, R - 2, S - 1

(C) P - 3, Q - 2, R - 4, S - 1

(D) P - 1, Q - 2, R - 4, S - 3

63.

'Ecological Footprint' corresponds to

(A) the land area required to preserve as forests to ensure sufficient levels of oxygen for a community.

(B) the land area necessary to supply natural resources to a community and disposal of its wastes.

(C) the land area required to take care of solid wastes and sewerage of a community.

(D) the land area per person per year, from which forests are cut.

64.

Match the following with their area of application.

(A) P - 1, Q - 1, R - 2, S - 3, T - 1

(B) P - 4, Q - 5, R - 5, S - 4, T - 1

(C) P - 3, Q - 5, R - 4, S - 1, T - 2

(D) P - 2, Q - 3, R - 2, S - 5, T - 5

65.

Select the appropriate word from the list given below the fits in ALL the blanks:

1. The aim of conservation is to retain or recover the _____ significance of a place.

2. Preservation is appropriate where the existing state of the fabric itself constitutes of specific _____ significance.

3. Restoration is appropriate only if there is sufficient evidence of an earlier state of the fabric and only if returning the fabric to that state recovers the _____ significance of the place.

4. Reconstruction is appropriate where a place is incomplete through damage or alternation and where it is necessary for its survival, or where it recovers the _____ significance of the place as a whole.

(A) historical

(B) cultural

(C) architectural

(D) aesthetic

66.

The rule for generating a Fibonacci series is:

(A) F_i = F_i-1 + 2 for i>1 given F_i and F₀

(B) F_i = F_i-1 + 1 for i>1 given F_i and F₀

(C) F_i = F_i-1 + F_i-2 for i>1 given F_i and F₀

(D) F_i = (F_i-1)² for i>1 given F_i and F₀

67.

Two names associated with the planning of Paris and Philadelphia are respectively:

(A) Georges-Eugene Hausmann and William Penn

(B) Patrick Geddess and Louis Wirth

(C) Albert Perry and Oswald Spangler

(D) Le Corbusier and John Friedman

68.

Which of the following statements is valid for a saddle surfaced shell structure?

P. regions of downward curvature exhibit arch like action

R. regions of upward curvature behave as a cable structure

(A) P is true and R is false

(B) R is true and P is false

(C) Both P and R are true

(D) Both P and R are false

69.

Which of the following statements describes the advantage of A.C. supply over D.C. supply?

(A) Electroplating process

(B) Noise reduction in motors

(C) Facility of transforming from one voltage to another

(D) Charging of storage batteries

70.

For which application software the following expression is valid?

(*2.5 (+(/ a 2) (- 5 ´)))

(A) Qbasic

(B) AutoLISP

(C) Java

(D) C++

Common Data for Question

Common Data for Question 71, 72 and 73:

For a building, the gross rent fetched is Rs. 22,500/- per month; municipal tax is Rs. 8,000/ per quarter; repair and maintenance charges are @ 10% of rent and other expenses borne by owner are RS. 16,000/- per annum.

71.

What would be the total outgoings in Rs.?

(A) 60,000/-

(B) 70,000/-

(C) 75,000/-

(D) 80,000/-

72.

What would be the net annual rent in Rs.?

(A) 1,90,000/-

(B) 1,95, 000/-

(C) 2,00, 000/-

(D) 2,05, 000/-

73.

If the years purchase in perpetuity comes out to be 12.5, what would be the capitalized value, in Rs. of the above building?

(A) 24,00, 000/-

(B) 24,37, 000/-

(C) 24,37, 500/-

(D) 25,00, 000/-

Common Data for Question 74 and 75:

The following table provides total population and urban population of India in various year.

74.

Level of Urbanisation in the year 1921 was:

(A) 10.29

(B) 10.84

(C) 11.18

(D) 11.99

75.

As per the table given in Q. No. 74 the Annual Growth Rate of urban population of India during 1921-31 was

(A) 0.03

(B) 0.79

(C) 1.76

(D) 1.91

Linked Answer Questions: Q.76 to Q.85 carry two marks each

Linked Answer Questions 76 and 77:

76.

In professional practice, when there are disputes among the architects, clients and contractors regarding the building construction or contract, then to resolve the issues the Expert / Experts appointed for the same is / are termed as

(A) Arbtirator

(B) Lawyer

(C) Solicitor

(D) Valuer

77.

When there is dispute among the above Experts then another expert is appointed to resolve the issued, who is known as

(A) Mediator

(B) Referee

(C) Judge

(D) Umpire

Linked Answer Questions 78 and 79:

78.

Identify the formula for calculating the reverberation time (t) of a hall of volume V cu. m., where S represents sound absorption area.

(A) t = 16V/ S

(B) t = 0.16V²/ S

(C) t = 0.16V/ S

(D) t = 16V/ S²

79.

A school auditorium has a capacity of 800 persons. Considering 3.5 cu. m. of volume per person and reverberation time of 1.25 sec, the total sound absorption area required would be:

(A) 348 sq. m.

(B) 358 sq. m.

(C) 368 sq. m.

(D) 378 sq. m.

Linked Answer Questions 80 and 81:

80.

If a bed room of 3m ´ 3m ´3m requires 3 air- changes per hour, and difference in temperature between inside and outside (DT) = 12 deg C, then Ventilation Heat Flow Rate (Qv) will be:

(A) 0.12 kW

(B) 0.35 kW

(C) 0.70 kW

(D) 1.17 kW

81.

For a given air velocity of 2m/s, the necessary cross-sectional area of supply-duct will be:

(A) 0.0375 sq. m.

(B) 0.0225 sq. m.

(C) 0.0113 sq. m.

(D) 0.0037 sq. m.

Linked Answer Questions 82 and 83:

82.

The number of senior secondary schools required for a city of population of 1,00,000 persons is:

(A) 8-10

(B) 14-15

(C) 18-20

(D) 25-28

83.

The total land requirement for senior secondary schools for a city of population of 1,00,000 persons is about:

(A) 8 ha

(B) 15 ha

(C) 25 ha

(D) 40 ha

Linked Answer Questions 84 and 85:

84.

Identify the relationship governing the cost of land (C) based on the following factotrs:

Net density in plots per hectare = p

Land use percentage allocation in net housing = q

Price of land in Rs. per sq m = s

(A) C = (10,000/p x 100/q) s

(B) C = (10,000/p x q/100) s

(C) C = (10,000/p x 100/s) q

(D) C = (10,000/s x 100/q) p

85.

If for a housing development, p = 30, q = 45 and s = 500, then the cost of land per dwelling unit is:

(A) Rs. 1,333/-

(B) Rs. 3,000/-

(C) Rs. 75,000/-

(D) Rs. 3,70,370/-

END OF THE QUESTION PAPER
